Canon’s state of the art wireless detector line-up takes you to new heights of possibilities in digital radiography. built-in AEC assistance, reduced weight, dust and waterproof, on-board memory and enhanced detector design are just a few of the clinically beneficial new features. In addition, this detector series is also compatible with Built-in AEC assist and Intelligent Noise Reduction.
Features of all detectors in this series
1.
Tough, Durable & Light weight
High quality materials
Covers can be exchanged
Exchangeable batteries
Light weight
2.

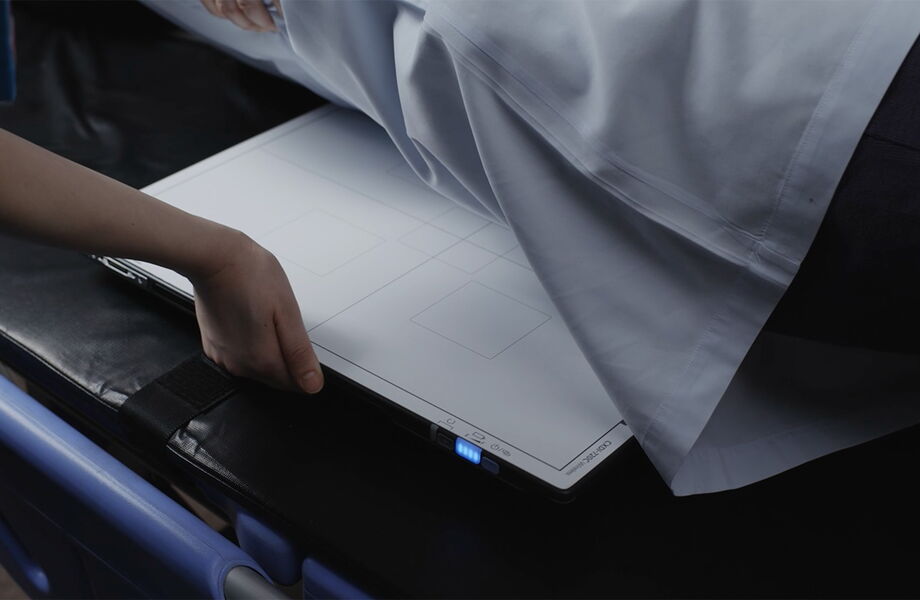

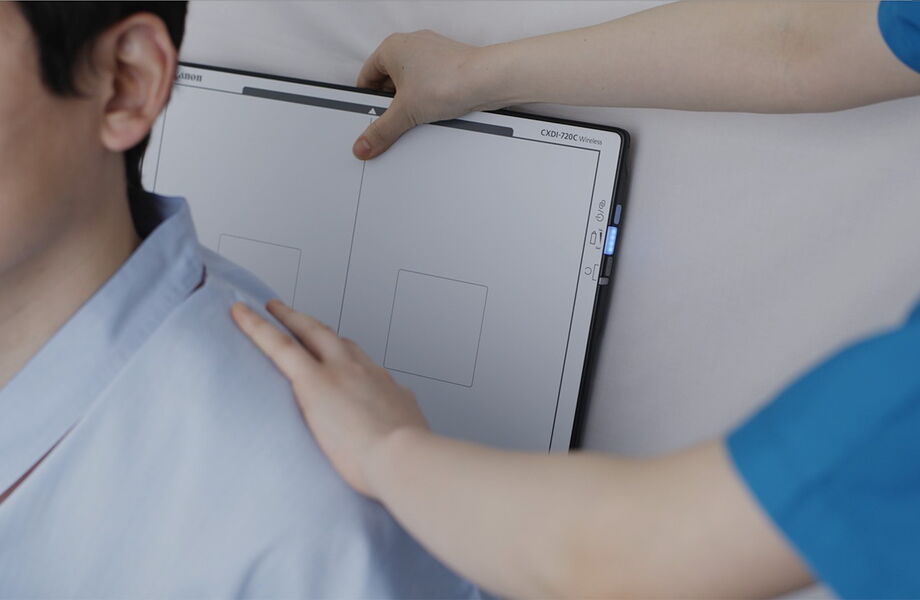

Ergonomic design
Comfortable hold and grip
Easier to position
Less strain for operator
Easy to clean smooth surface
3.
Excellent DQE and MTF
QE Typical 74% (0 lp/mm)
MTF Typical larger than 45% (2 lp/mm)
4.
Battery performance
More than 9.5 hours in stand by mode

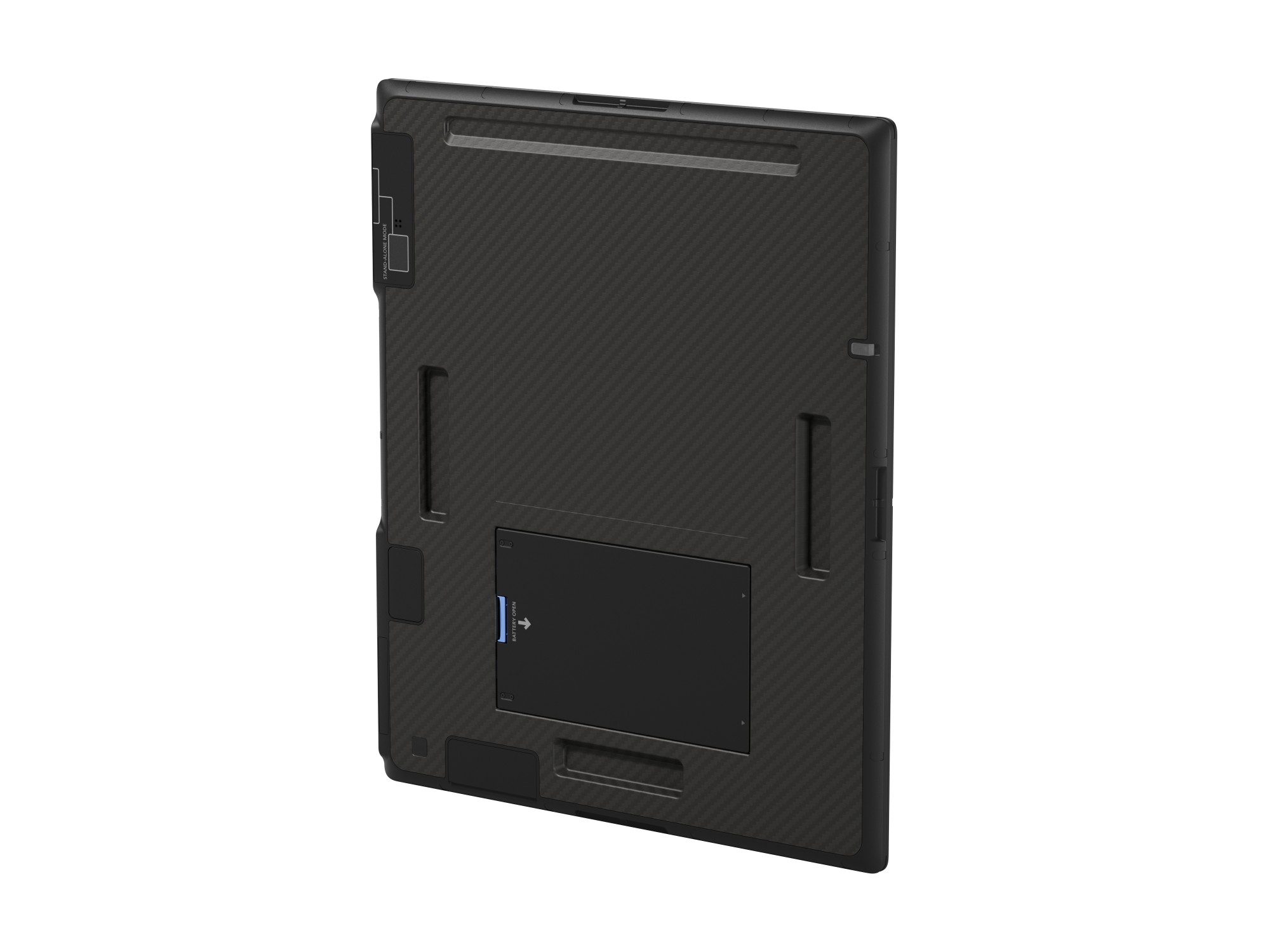

Battery can easily be exchanged
5.
CXDI Control Software NE
Optimized workflow
Body parts and customer specific image processing
Secure
Optional features like scatter correction, advanced edge enhancement, Intelligent NR, Built-in AEC assistance, etc.
6. (optional)
Built-in AEC Assistance
Optimize X-ray dose without external AEC sensor
Ideal for free positioning
Auto ROI selection by rotation
Different ROI patterns can be selected
7. (optional)
Intelligent NR (deep Learning)
Intelligent noise reduction
Improved image quality
Possible dose benefit
Assist diagnosis

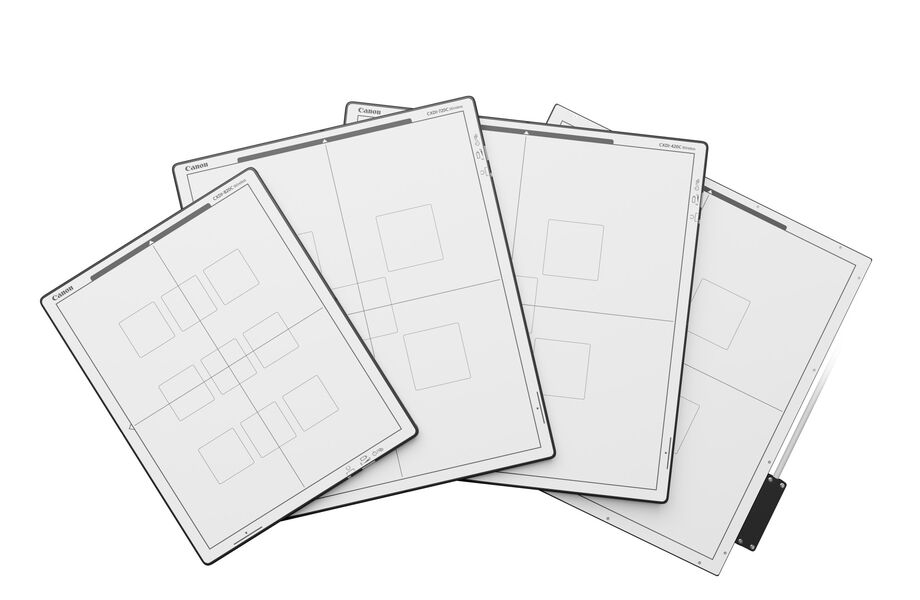

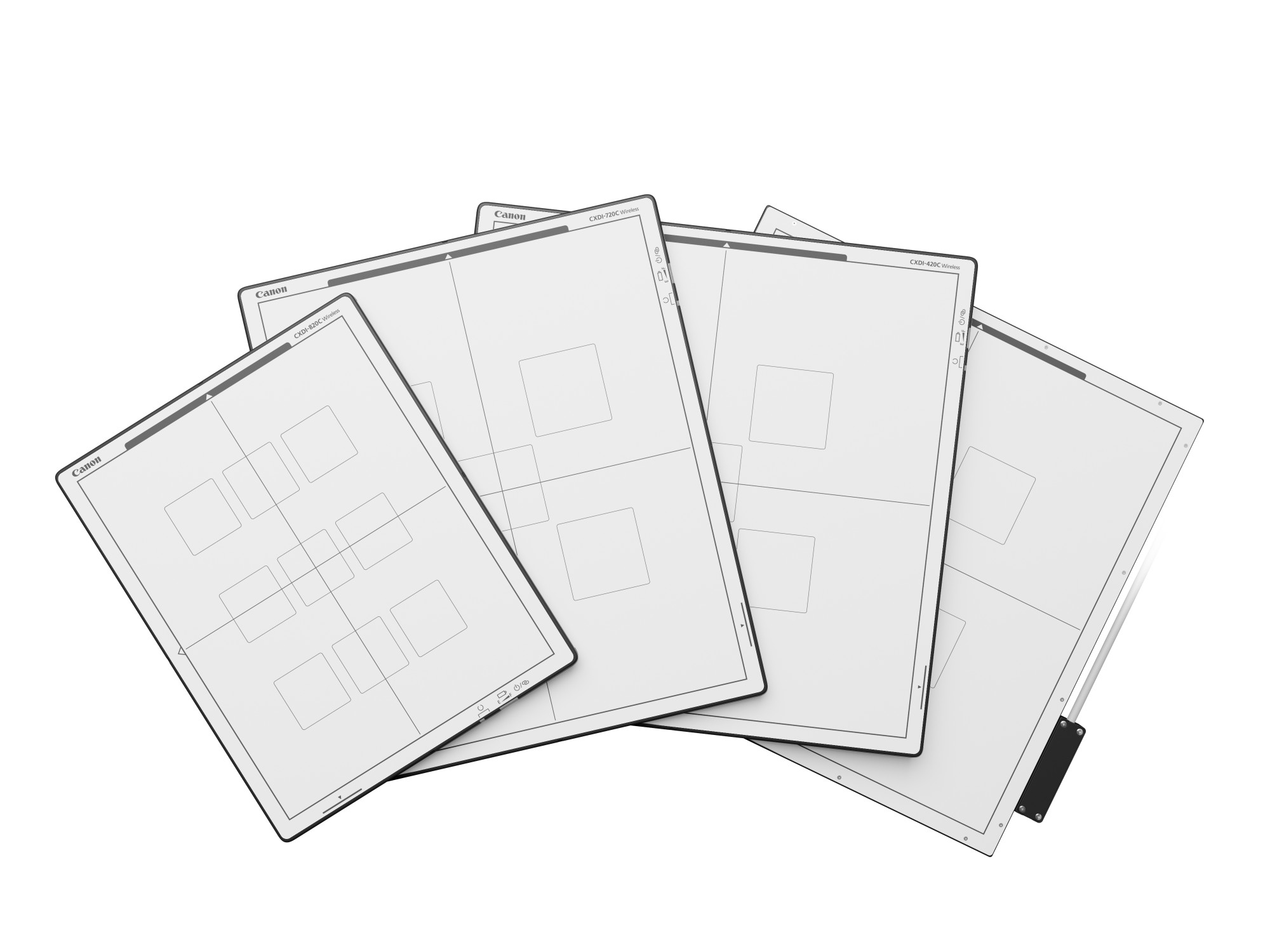

Detectors of this Elite-series

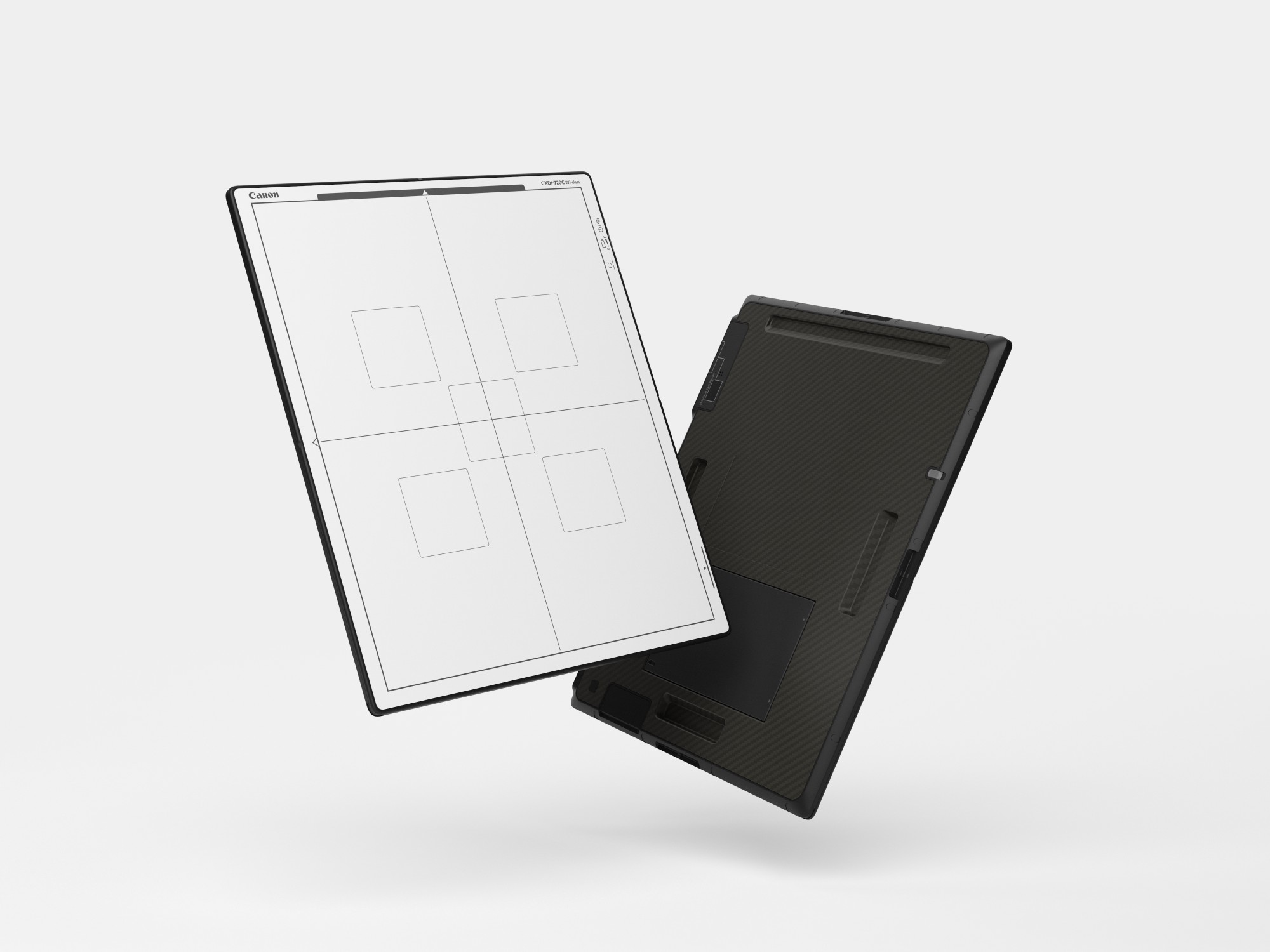

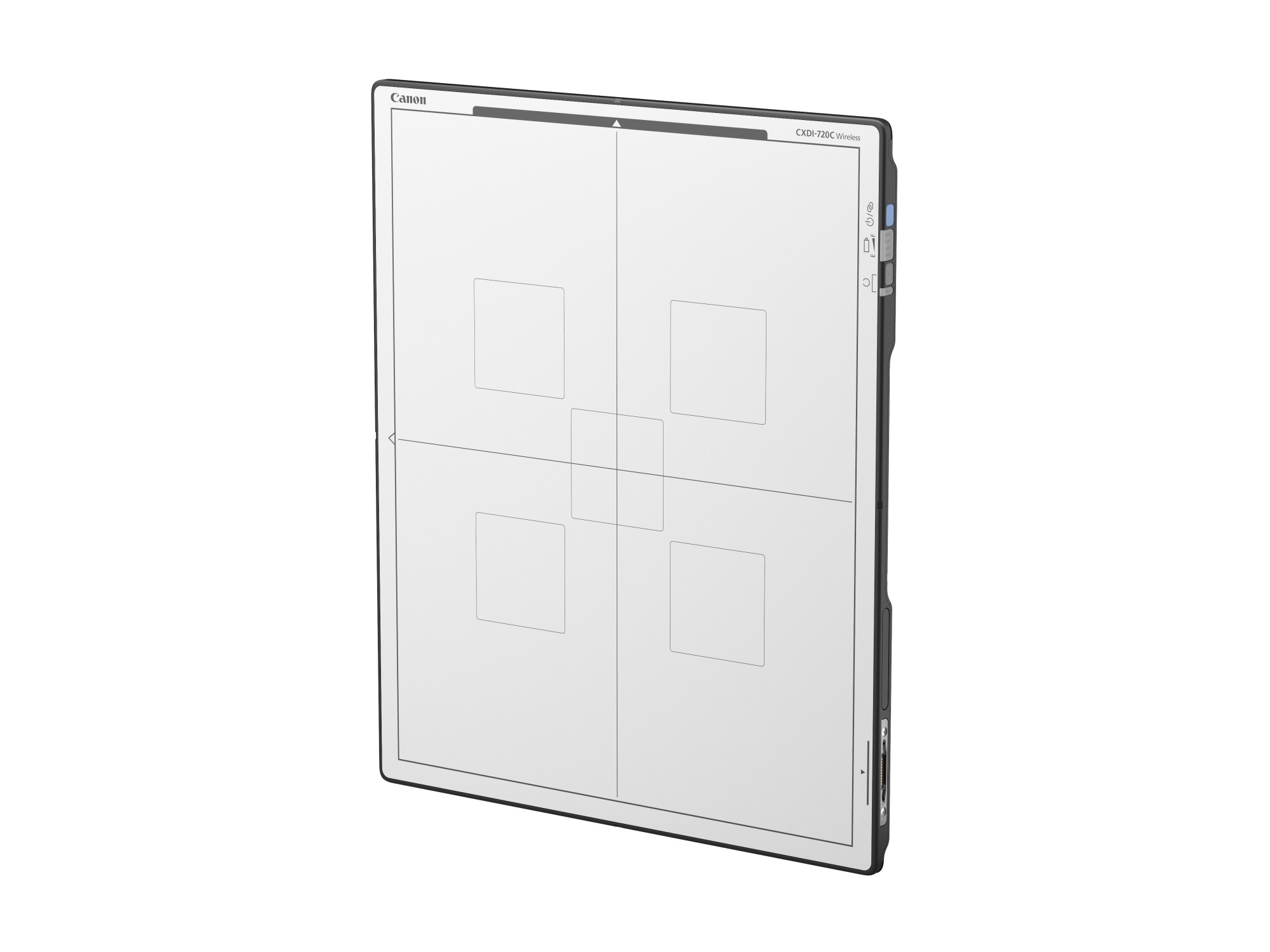

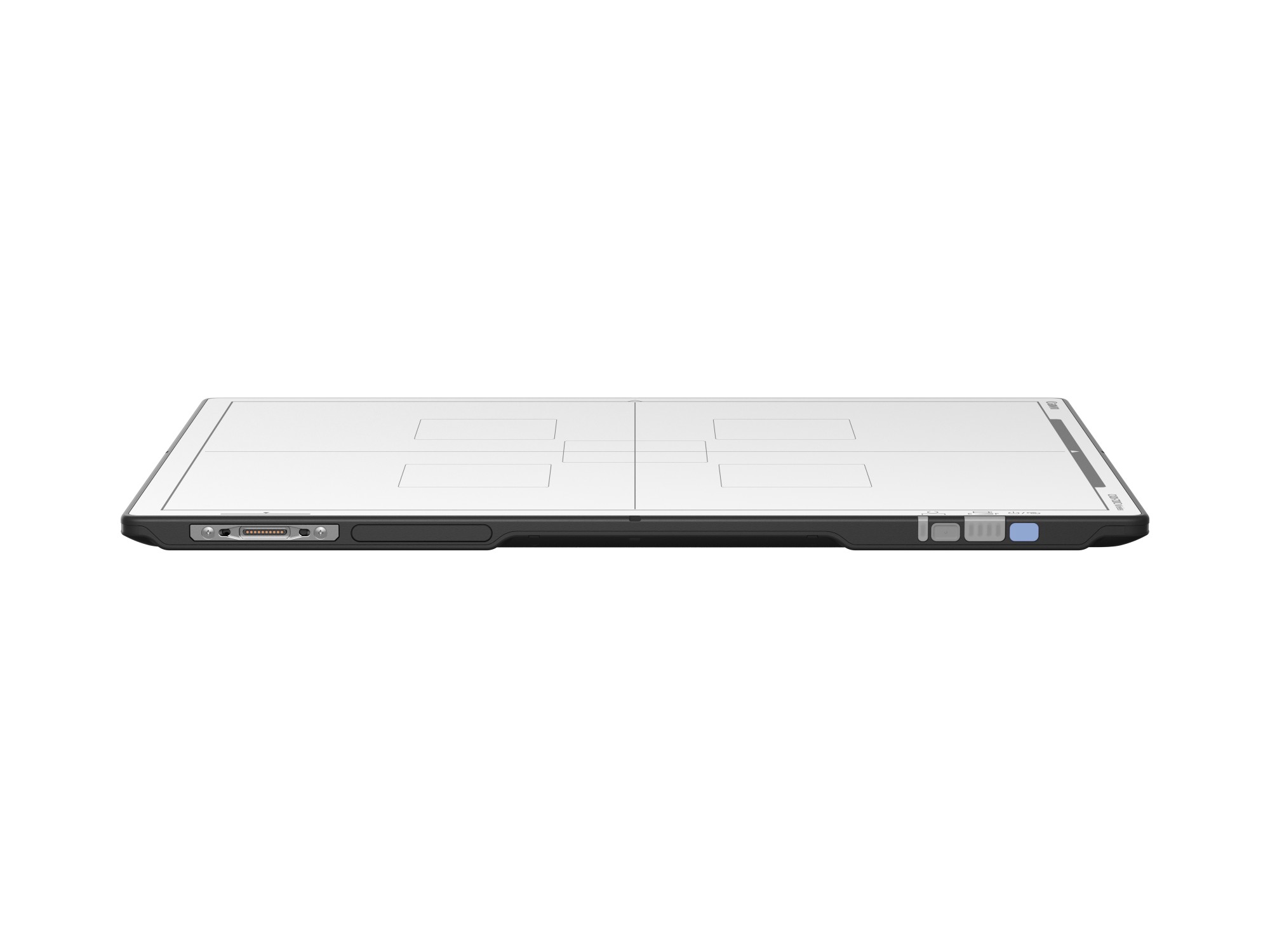

CXDI-720C Wireless
CsI (Cesium Iodide)
Weight (incl. battery): 2.5 kg
External dimensions: 38 x 46 cm
Effective imaging area: 35 x 43 cm
Image matrix size: 2800 x 3408 pixel
Pixel size: 125 µm
Resolution: 4.0 lp/mm
Preview image time: 1 sec
Cycle Time: 4 sec
Charging performance: ca. 150 min

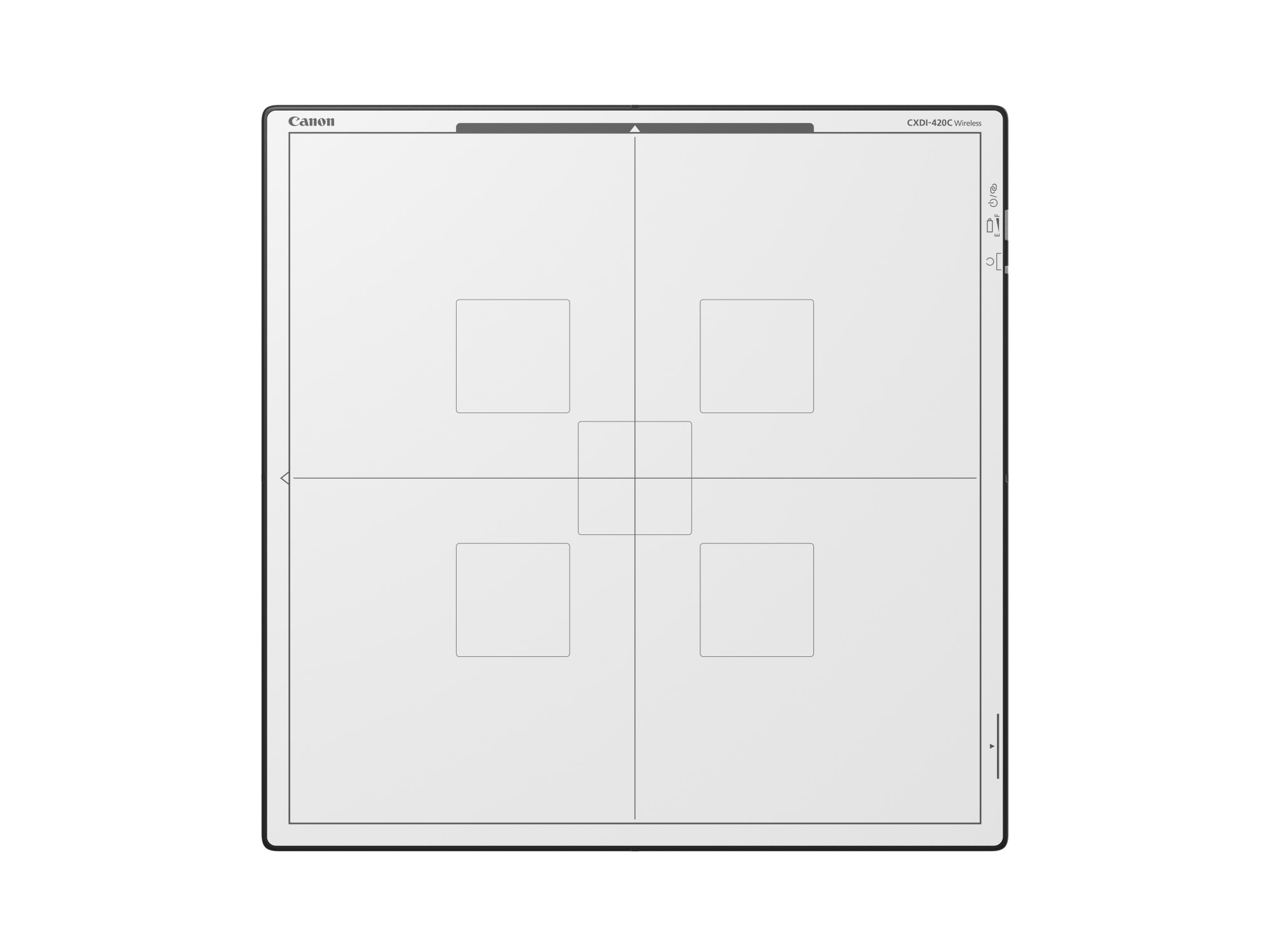

CXDI-420C Wireless
CsI (Cesium Iodide)
Weight (incl. battery): 3.0 kg
External dimensions: 46 x 46 cm
Effective imaging area: 43 x 43 cm
Image matrix size: 3408 x 3408 pixel
Pixel size: 125 µm
Resolution: 4.0 lp/mm
Preview image time: 1 sec
Cycle Time: 4 sec
Charging performance: ca. 150 min

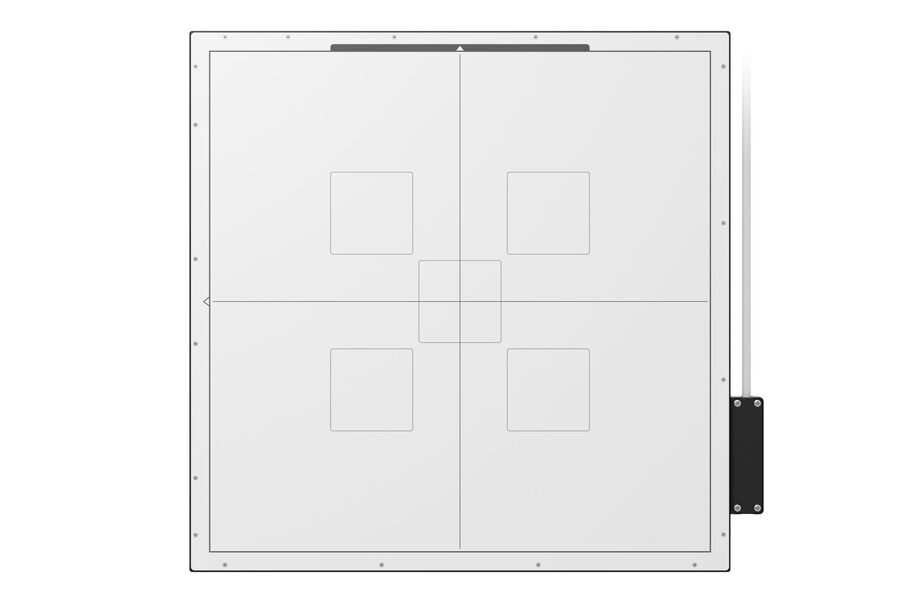

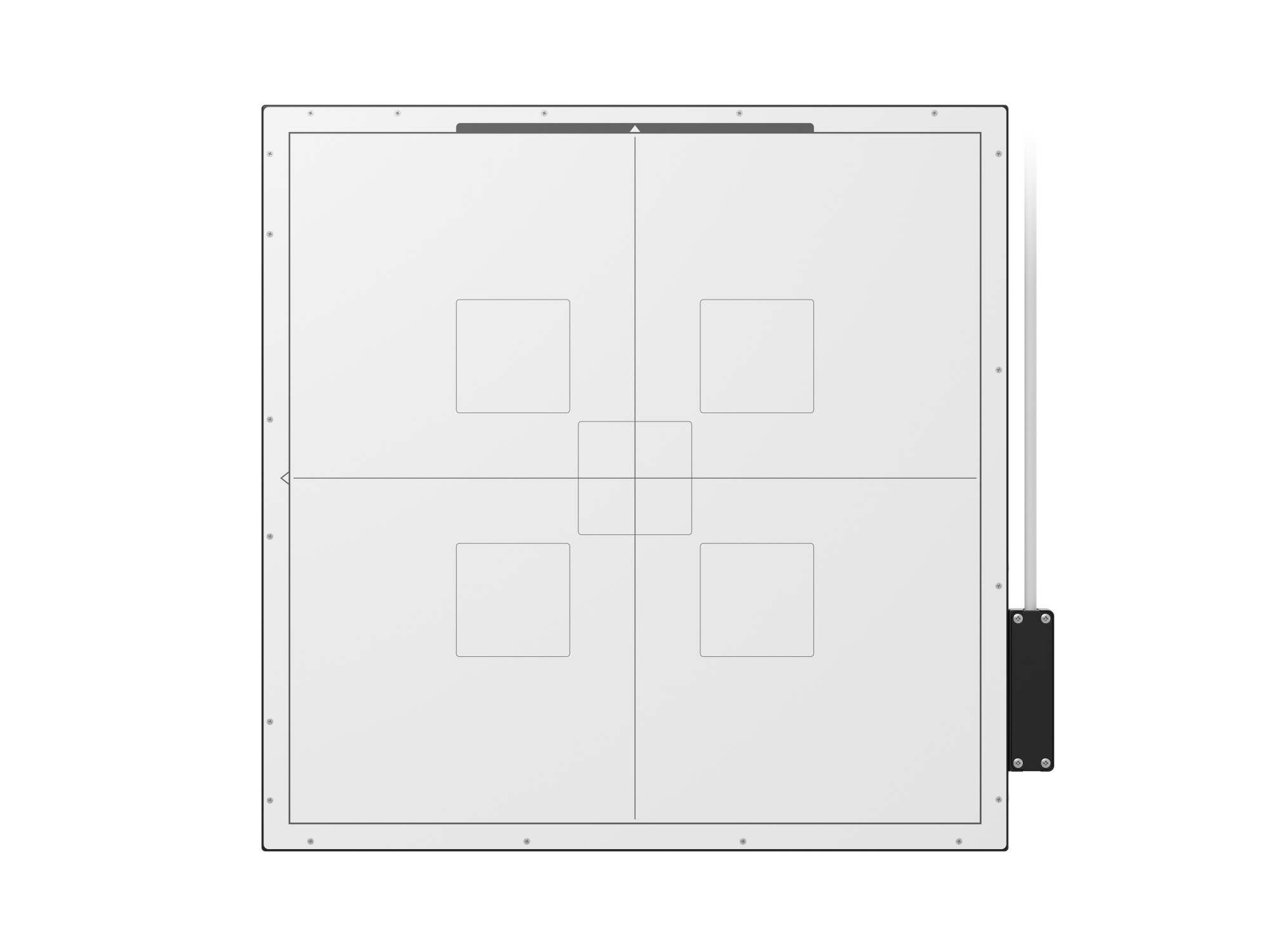

CXDI-420C Fixed
Fits easily into standard 46x46 cm Bucky
Retrofitted into a range of radiography devices, such as upright stands and tables
CsI (Cesium Iodide)
Weight (incl. battery): 6.1 kg
External dimensions: 46 x 46 cm
Effective imaging area: 43 x 43 cm
Image matrix size: 3408 x 3408 pixel
Pixel size: 125 µm
Resolution: 4.0 lp/mm
Preview image time: 1 sec
Cycle Time: 4 sec.
Charging performance: ca. 150 min

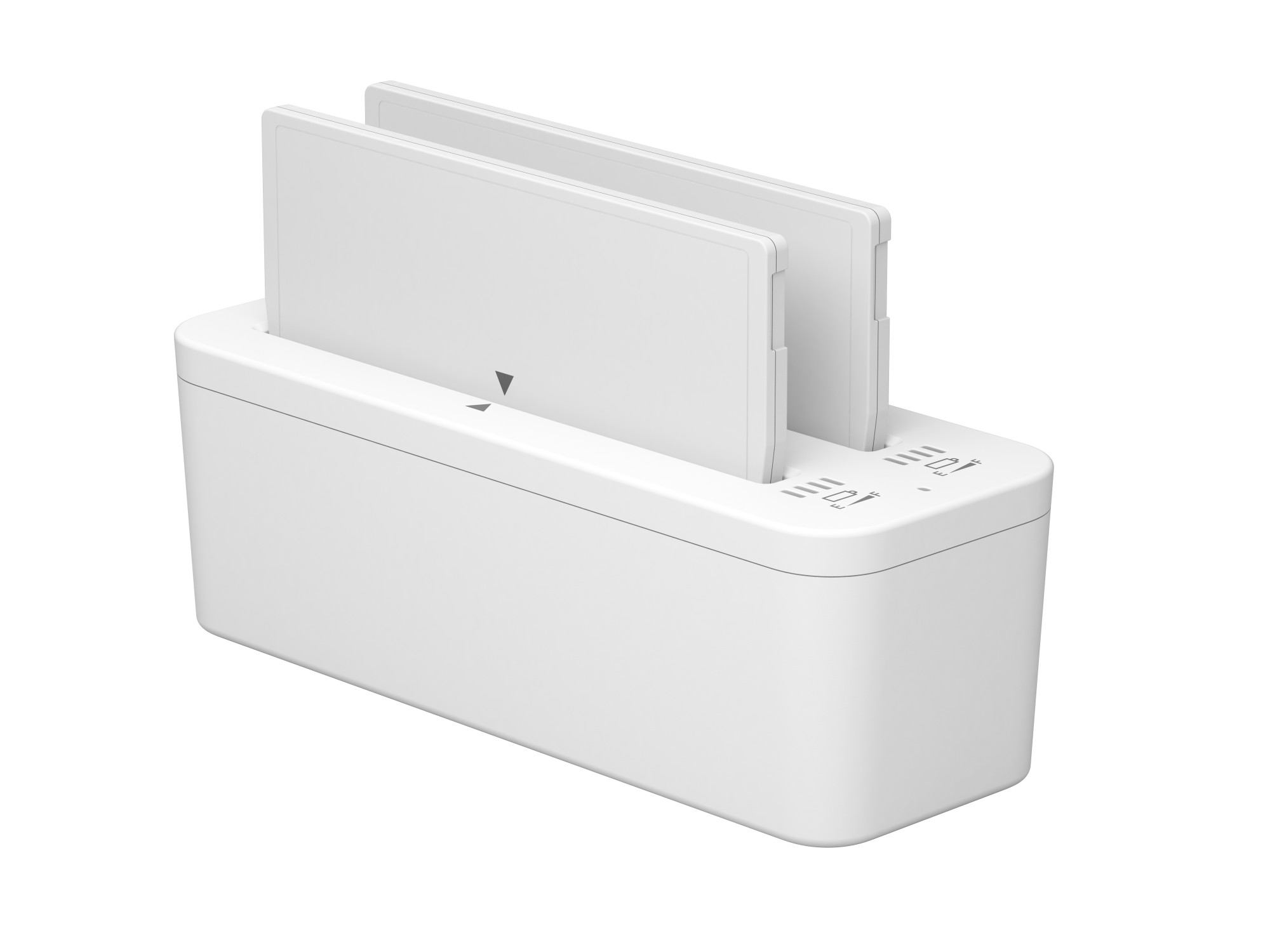

Equipment
(optionally available)
Detector stand to charge battery without removing the battery from the detector
Status indicator
