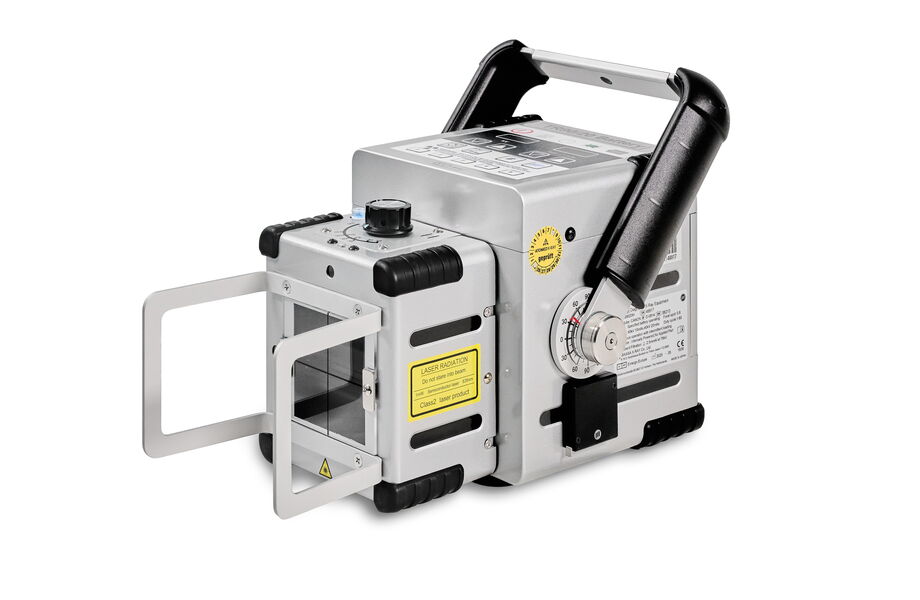

TR 90/20 Battery
It is a battery operated HF X-ray unit with pulse frequency modulation at a total weight of 7.3 kg including its battery. The fully charged battery allows up to 640 exposures.
Light and user-friendly
- Operator-friendly due to a centred balance point
- It is included in our fully equipped X-ray system ATOMED AXTtreme
- Innovative impact resistant construction reduces the risk of X-ray tube damage e.g. after a drop
- DR interface for the connection with digital systems
- Latest X-ray tubes up to 90kV by a company of CANON
- High Power mode (HP) - mA output increases from 10 to 15 in this kV range when High Power Mode is selected
- TR technology meets the radiation protection standards of tomorrow already today
- Activation of collimator light (modern, long-life and battery saving LED lamp) by hand switch
- Collimator incl. format pre-adjustment, dual laser pointer and spirit level
- Digital display and adjustment of mAs, sec., kV
- Display of battery charging status

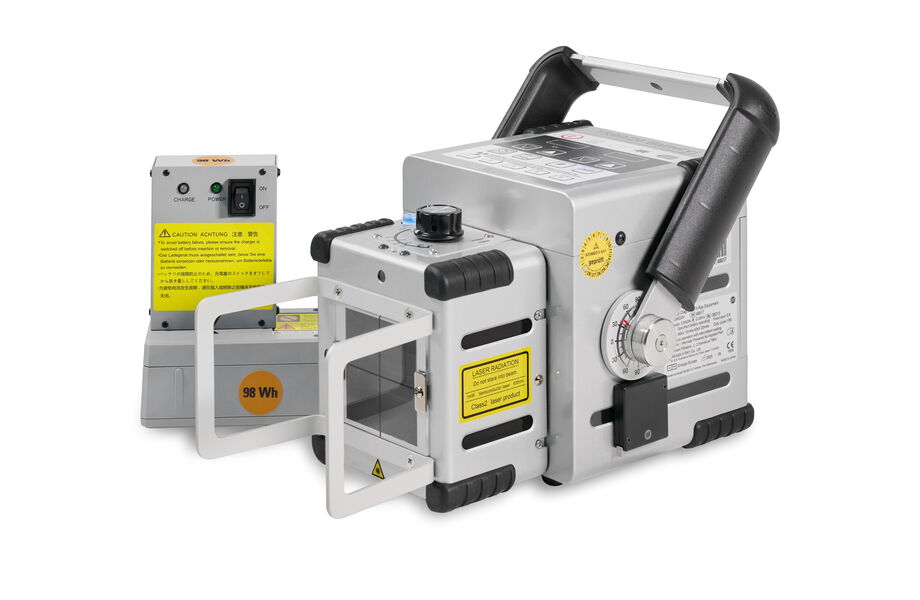

- High-capacity Lithium-ion battery for up to 640 exposures per charging approx. three - four hours charging time
- LED display “X-RAY”, “READY” and “ERROR”
- 5 memory buttons
- Acoustic and optic signal during exposure
- Aluminum casing with buffer edging
Battery operated, pulse-frequency modulation high frequency generator and impact resistant construction can be charged at any socket outlet (with 16 A fuse protection).
Technical details
- Output in 2-kV-steps
- X-ray tube from CANON
- 0.8mm focus
- digital timer from 0.02 to 1.00sec
- 7.3kg incl. collimator, dual laser and battery
- External charging of battery only, no charging while usage possible
TRB9020H (by MIKASA X-Ray Co.) is certified according to MDR (EU) 2017/745.
